In the case of some structures, such as tunnels or round towers for example, it makes sense to unfold the image information onto the plane using cylinder projection
In order to also achieve the highest degree of dimensional precision for drawings of these structures our software LupoScan also supports this option.

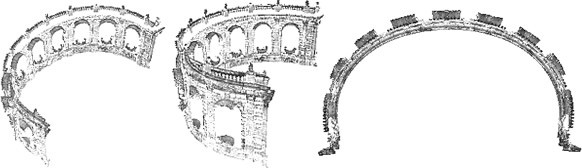

Abwicklung einer zylindrischen Arkade 1
Abwicklung einer zylindrischen Arkade 2

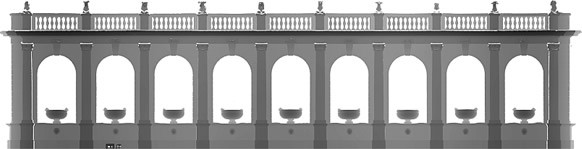

Abwicklung einer zylindrischen Arkade 3
